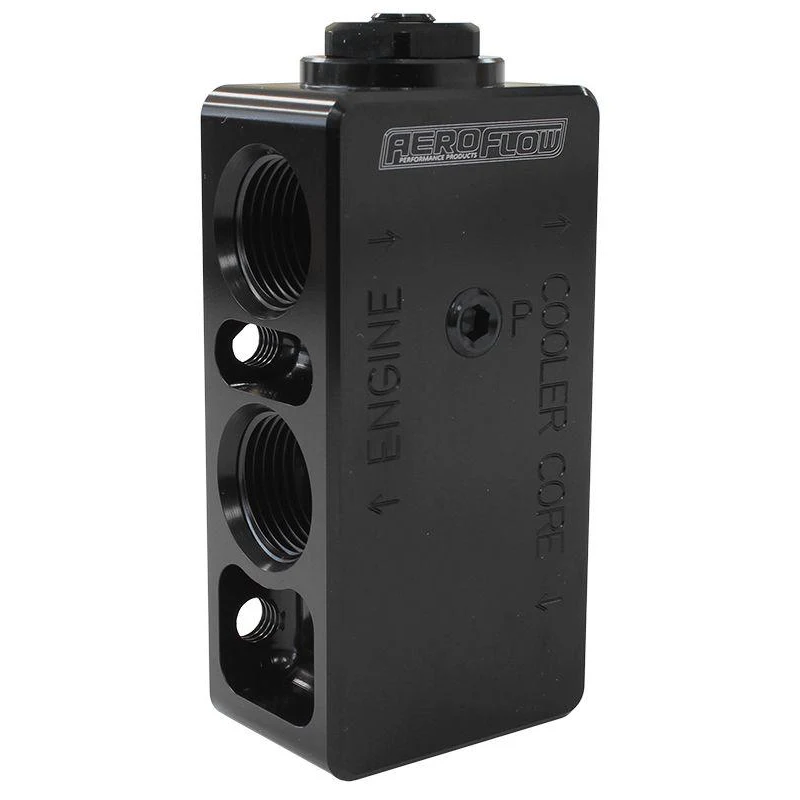

Aeroflow Billet Oil Thermostat

This Billet Aluminium thermostat helps maintain engine oil temperature by holding the oiluntil it reaches operating temperature at (82°C) 180°F when the thermostat is fully open to allow full flow to the oil cooler. It will self-adjust flow according to the oil temperature to maintain a constant operating oil temperature just like a coolant thermostat would operate.

The main body is made from billet 6061 aluminium, then anodised blackfor great looks and corrosion resistance. This features fourlabelled inlets and outlets -10AN ORB ports provided for plumbing the engine oil to andfrom the sandwich adapter and the oil cooler. Two 1/8" NPT ports and plugs are provided for auxiliary sensors.

Specifications:
Overall Length: 50mm
Overall Width: 34.70mm
Overall Height: 107.20mm
Centre to Centreof Engine Side -10ORB Ports: 38.30mm
Centre to Centre of Oil Coler Side -10ORB Ports: 58.60mm
- Start to open @ 71°C (160°F)
- Fully open @ 82°C (180°F)
- 3 x M8 x 1.25mm Mounting Holes
