20" LED Lightbar 9 - 36 Volt 90 Watt

Ignite Ultra Slimline Single Row LED Driving Lamp Lightbar 9 - 36 Volt 90 Watt

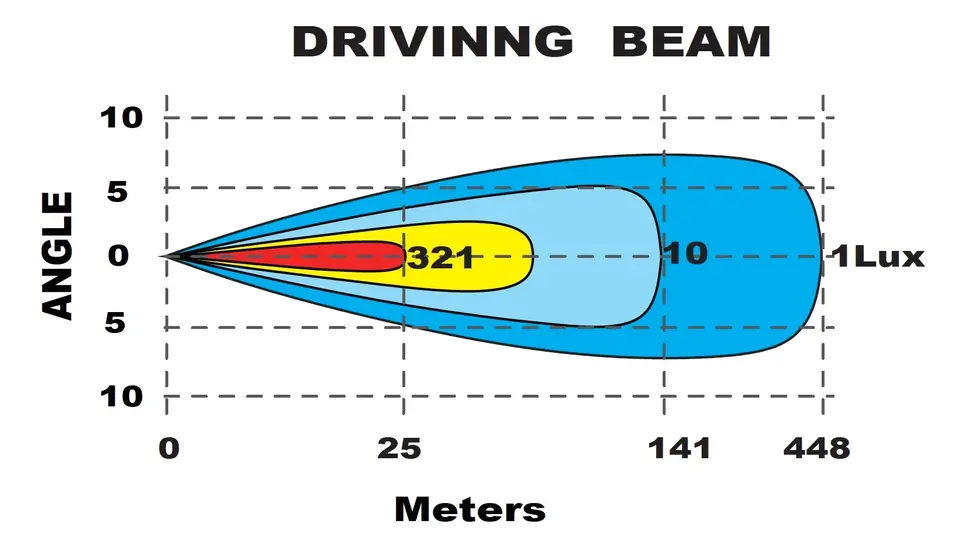

Spot (Pencil) Beam Pattern 15 Degrees

18 x 5 Watt High Intensity LG LED's

8,100 Raw and 6,950 Effective Lumens and 6,500K

165,625cd Peak Beam Intensity

Current Draw: 6.2amp @ 12 Volt and 2.8amp @ 24 Volt

Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens

Light Transmittance >95%

Integrated Electronic Thermal Management (ETM)

Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink

and Pressure Equalising Vent

Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets

Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length

500mm Lead with 2 Pin Deutsch Plug

Over and Under Voltage Protection

Reverse Polarity Protection

UV, Water and Shock resistant

Anti Rust, corrosion and freezing resistance

50,000 Hours LED Lifespan

ECE R112 (Ref 45), R10 and CE Approved

IP68 and IP69K Rating

Environment Temperature: -40°C ~ +60°C

2 Year Warranty

Weight: 1.12kg
